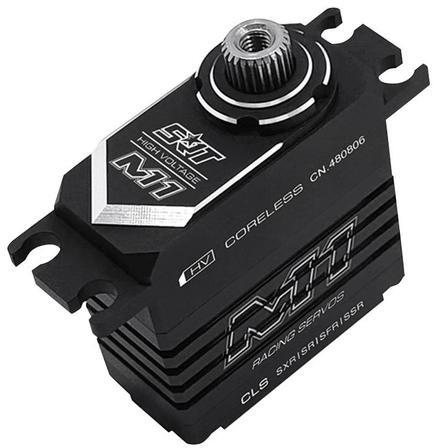

M11 HiVOLT CORELESS Digital servo (9kg-0,055s/60°) Servo The Coreless Servo M11 HiVOLT in 1/12 scale is perfect for various RC vehicle models. It supports multiple operating modes, including high-speed modes such as SXR, SFR, SR, and SSR, making it suitable for a wide range of applications. It stands out with impressive performance and low energy consumption. Furthermore, it features a small dead zone of only about 2 μs, which means it responds rapidly to control signal changes, ensuring precise motion control. ModelSRT-M11TypeDigitalBearingsDoubl eMotor TypeCorelessGear TypeMetalGear MaterialTitanium and SteelControl SystemPulse Width ControlOperating Frequency1520 μs / 330 HzOperating VoltageDC 6.0-8.4 VOperating Speed (6.0 V)0.07 s/60 degrees unloadedOperating Speed (7.4 V)0.065 s/60 degrees unloadedOperating Speed (8.4 V)0.055 s/60 degrees unloadedStall Torque (6.0 V)7.0 kg. cmStall Torque (7.4 V)8.0 kg. cmStall Torque (8.4 V)9.0 kg. cmPotentiometer DriveDirectDimensions28.5 x 13.4 x 29 mmWeight28 gConnector Cable Length170 mm (JR-type connector)
